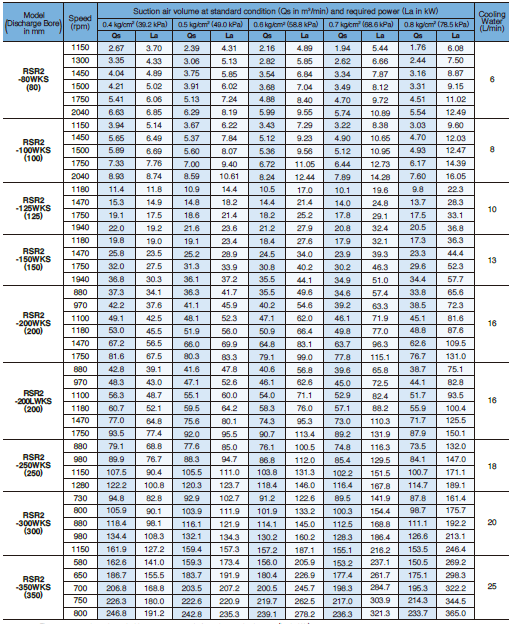

Select Chart (for reference) - Air Cooler Type Blower
Note :
- The motor must be selected with a 10 to 20% margin from the required power (la in kw).
- The standard condition is defined as a temperature of 20ºC, absolute pressure of 101.3kPa, and relative humidity of 70%.
- For blowers with a discharge bore diameter of 80 to 250mm, the 3-lobe spur rotor can be exchanged with a helical rotor (option).
- In the case of operating at 0.9kg/cm2 (58.8kPa), if you need a large model, contact your dealer or Tsurumi representative.
