Model & Capacity for the V-HP-SF Series (Low-Temperature Evaporation supplier at Asian Malaysia-Environmech Sdn Bhd)

Model and Capacity (V-HP-SF Series)

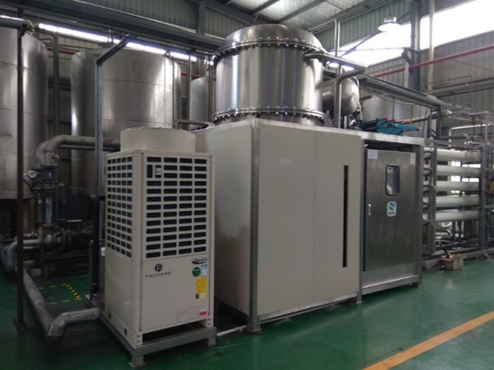

V-HP-SF series evaporator uses a compressor to work on the freon which exchanges heat with the material through the heat exchange, and the material is concentrated and discharged as a concentrated liquid finally. The operating cost of the system is relatively low, and it is suitable for long-summer time, high-temperature areas, or areas with high operation requirements.

Model (L/d)

Evaporative Power (L/h)

Installed Power (kw)

Consumption (w/l)

Outline dimension

 (L x B x H)

V-HP-SF-1000

45

9.83

100-140

3.0×0.9×2.8

V-HP-SF-2500

110

18.13

85-110

3.8×1.2×3.0

V-HP-SF-5000

216

34.50

85-110

4.0×1.6×3.2

V-HP-SF-8000

336

48.00

85-110

4.3×1.8×3.4

V-HP-SF-10000

440

64.35

85-110

4.5×2.0×3.6

V-HP-SF-15000

625

90.00

85-110

6.0×3.0×3.7

V-HP-SF-20000

870

125.00

85-110

6.0×3.2×3.8

V-HP-SF-25000

1050

150.00

85-110

6.0×5.0×3.8

V-HP-SF-30000

1250

180.00

85-110

6.0×6.0×3.8


For more information or enquiry, please contact Environmech Sdn. Bhd.
Contact us: http://www.environmech.com/p/contact-us.html Website: www.Environmech.com
